FPV Drone go pro HD(1080P) long distance (3-5KM) digital wireless video transmitter
Data Sheet
Introduction
F350 is the 1080p Full HD digital video transmission system including one transmitter and one receiver. Transmitting the video, image, OSD and more information by the wireless communication mode. It is perfect for all fields video transmission because of its light weight, low power consumption, long distance and low latency. This digital video transmission system is based on 5G frequency and with a maximum 5km range in the air with omni-directional antennas. Latency is less than 100ms. Please put ground system antenna wide side face to transmitter, otherwise, the work distance will be reduce to 50%. The output power is adjustable from 20mw to 800mw. The Receiver module has both HDMI output and wifi output, so the wireless video can be displayed on a Monitor and mobile phone at the same time.

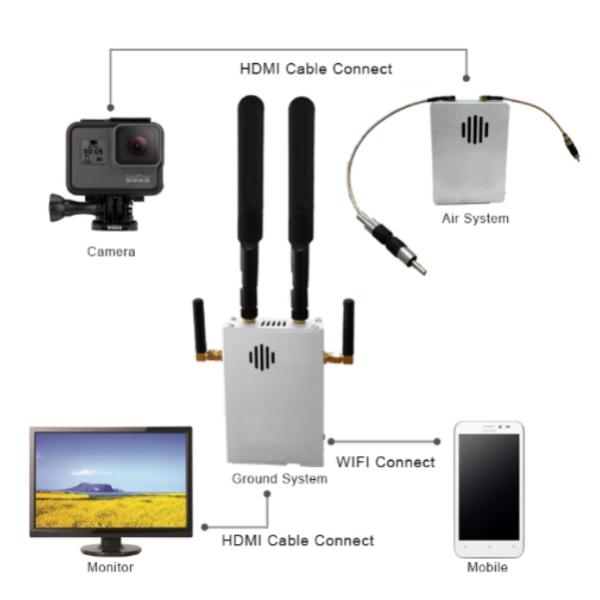

Connection
Key Features
- Up to input resolution: 1080P, 720P supported.
- Maximum Transmission Distance: 3KM on the ground; More than 5KM air to ground.
- Transmission power: 20mW~800mW adjustable
- Weight: (Transmitter) 70g /(Receiver) 200g
- Latency: Less than 100ms
- Frequency: 5Ghz
- Input: HDMI
-Output: WIFI (for mobile devices) & HDMI (for HDMI display devices)
- Other features: Multi-persons monitoring; Built-in OSD
Interface
Tx
Rx

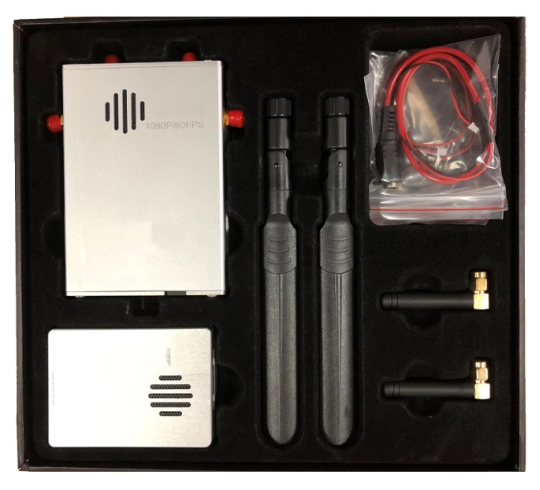

Package List
1. 1 unit transmitter and receiver
2. 2pcs transmitter antennas
3. 1pc Power cable
4. 1pc HDMI cable (D-D)
5. 2pcs receiver antennas
6. 2ps Mobile Antennas
7. 1pc extension bar
|
|
