2.4Ghz Drones Wireless Video transmitter with 70ms delay & 30km range air to GCS
This system is a customized wireless video transmission product which designed for the aerial photography need of drones. With best in class picture quality, low latency transmission, the biggest range can reach 30-50km that allows you to monitor the entire scene.
Products Features
| 1. Support point to point |
| 2. Adopt high-speed wireless transmission technology, low latency, and long transmission range. |
| 3. Support standard HDMI video wireless transmission |
| 4. H.264 Image compression technology, High-quality intensive compression, up to broadcasting-level image. |
| 5. Switching the channels by software. |
| 6. Support software upgrade. |
| 7. Perfect environmental adaptability, working temperature range: -40~+85°C |
| 8. Omni or Panel antenna receiving for your option, good resistance to multipath. |
| 9. Support wide voltage access, Flexible wiring. |
| 10. Metal housing with mounting holes for easy installation. |

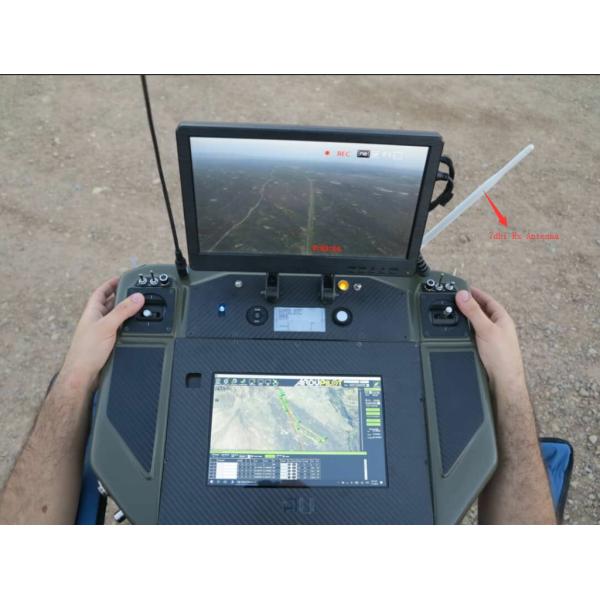

Application
Tx Connection
1. Connection of power cable
2. Connection of HDMI cable
3. Connection of TTL cable with fly controller for example Pixhawk
4. Antenna connection
5. Place of transmitter and antenna installation
6. Antenna connection through extension cord
Rx Connection
1. Connection of power cable
2. Connection of HDMI cable
3. Connection of infrared extension cord
4. Connection of 14dBi antenna
5. Connection of Ethernet cable with PC
6. Connection USB TTL Cable with GCS
|
|
2.4Ghz Drones Wireless Video transmitter with 70ms delay & 30km range air to GCS Images
|
